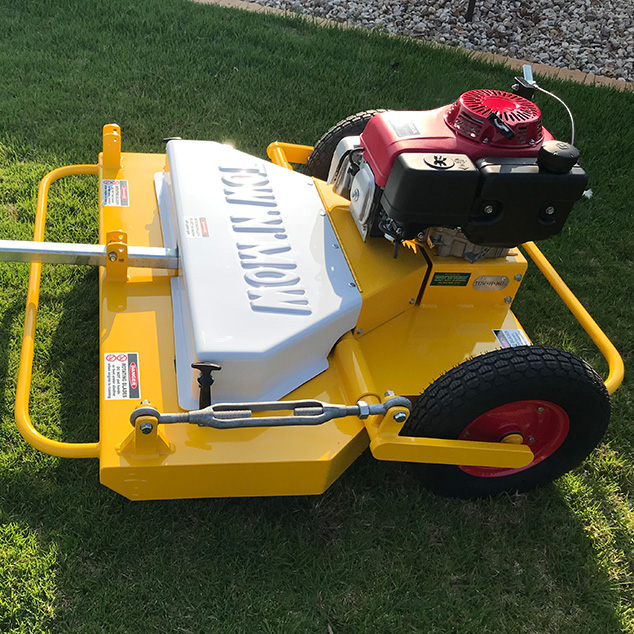

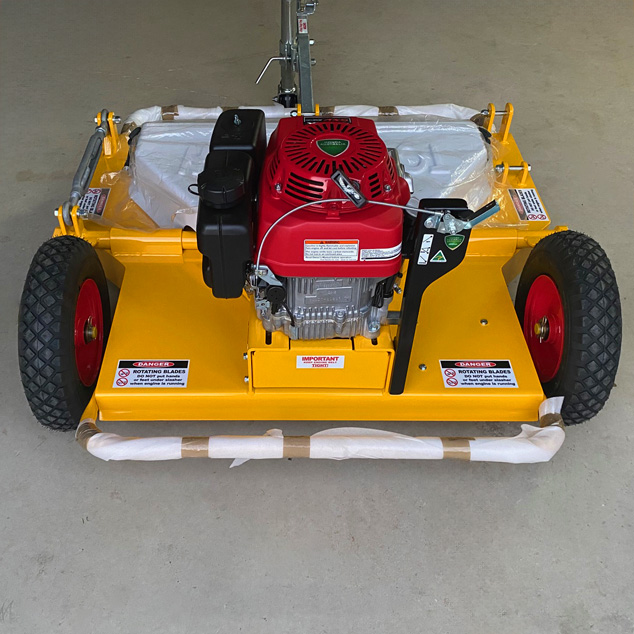

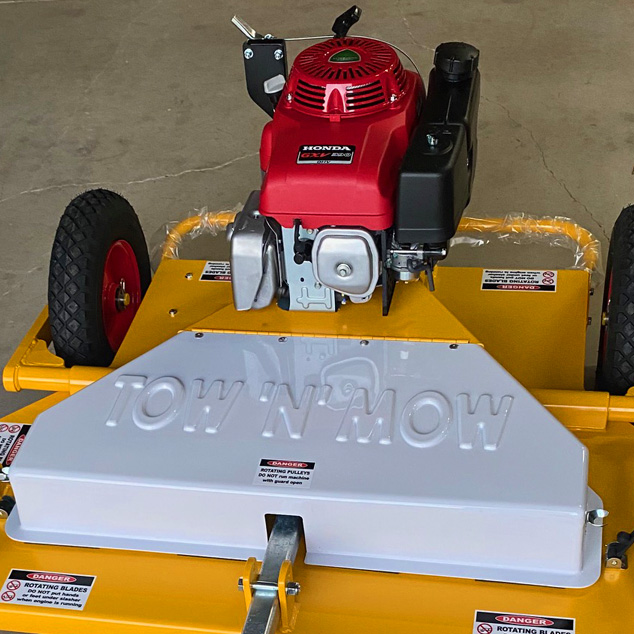

The TNM-13Man comes standard with the Honda GXV390, Manual Start engine and heavy duty steel pulleys. The TNM-13Man is best suited for small to medium acreages. With its 2.1 litre fuel capacity, it mows up to 1.9 acres on a tank of fuel.

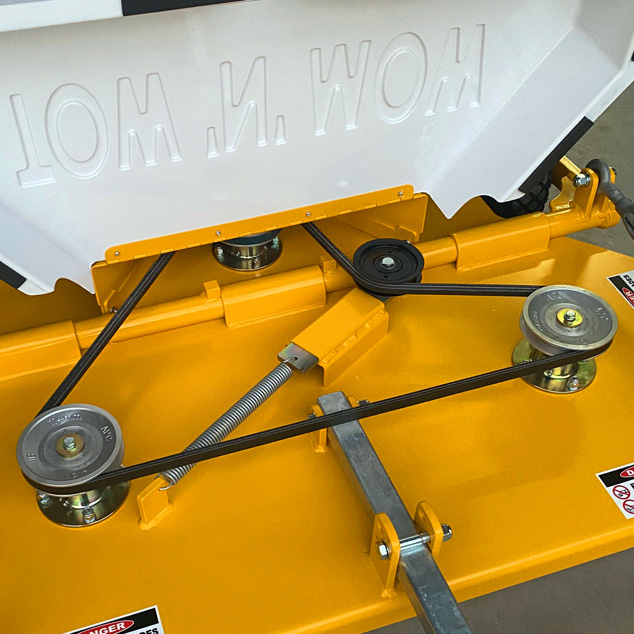

Its features include our tough 5mm steel deck, quick adjustable height control turnbuckle, standard centre or offset side drawbar positions, easy maintenance to all belts, triple bar blades and alloy pulleys.
Other upgrades available are a custom made shortened jockey wheel and high density foam filled wheels. Save time and effort with punctures being a thing of the past.
Specifications:

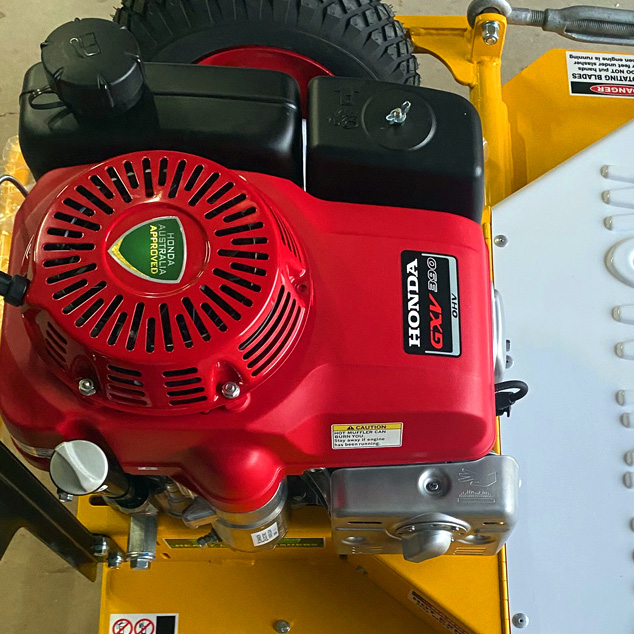

| TNM-13M: | Honda GXV390 Manual Start engine More Engine Details > |
| Overall length: | 2000mm |
| Deck length: | 1350mm |
| Deck width: | 1200mm |
| Height: | 550mm |
| Tyre size: | 4.00 – 8 |
| Cutting height: | 20mm – 200mm |
| Cutting deck: | 5mm steel – powdercoated |
| Cutting width: | 1170mm, 46” cutting width – rear grass discharge |
| Dry mass: | 180kg |
| Fuel capacity: | 2.1 litres |
| Oil capacity: | 1.1 litres |
| Start options: | Manual pull start |
| Cutting speed: | Up to 10km/hr |
| Acres per hour: | Up to 1.9 acres/hour |
| Blades: | Triple Bar Blades |
| Belts: | Quality low stretch Kevlar B section belts |
| Pulleys: | Alloy |
| Draw Bar: | 50mm coupling or Tongue & Pin drawbar |
