• Triple Blade Cutting System
  • Choice of 4 quality Honda Engines
  • Quick adjustable height control turnbuckle
  • Rear grass discharge
  • Suitable for vineyards, orchards & larger areas
  • 1170mm (46”) cutting width
  • Configurable side or standard centre drawbar position
  • Easy maintenance to all belts, blades & pulleys
  • Optional 50mm Trailer Coupling (Drawbar)
  • Optional Small jockey wheel available

  VIEW MODEL SPECIFICATIONS
MODEL TNM-13M TNM-13ME TNM-16E TNM-23E
Engine Honda GXV390 Honda GXV390 Honda GXV530 Honda GXV630
HP 13Hp 13Hp 16Hp 23Hp
Oil Capacity 1.1 litres 1.1 litres 1.05 litres 2.2 litres
Pulley Type Alloy Machined Steel Machined Steel Machined Steel
Start Options Manual Pull Manual & Electric Electric Start Electric Start
Fuel Capacity 2.1 litres 2.1 litres 11 litres 11 litres
Deck Construction 5mm Steel 5mm Steel 5mm Steel 5mm Steel
Tyres 6 ply 4.0-8 6 ply 4.0-8 6 ply 4.0-8 6 ply 4.0-8
Cutting Width 46” 1170mm 46” 1170mm 46” 1170mm 46” 1170mm
Cutting Height 20mm to 250mm 20mm to 250mm 20mm to 250mm 20mm to 250mm
Cutting Speed Up to 10km/hr Up to 10km/hr Up to 15km/hr Up to 15km/hr
Acres per hour Up to 1.9 acres/hr Up to 1.9 acres/hr Up to 2.5 acres/hr Up to 2.5 acres/hr
Blades Triple bar blades Triple bar blades Triple bar blades Triple bar blades
Dry Mass 180kg 180kg 180kg 190kg
Deck Length 1230mm 1230mm 1230mm 1230mm
Deck Width 1200mm 1200mm 1200mm 1200mm

TNM-13M TNM-13ME TNM-16E TNM-23E

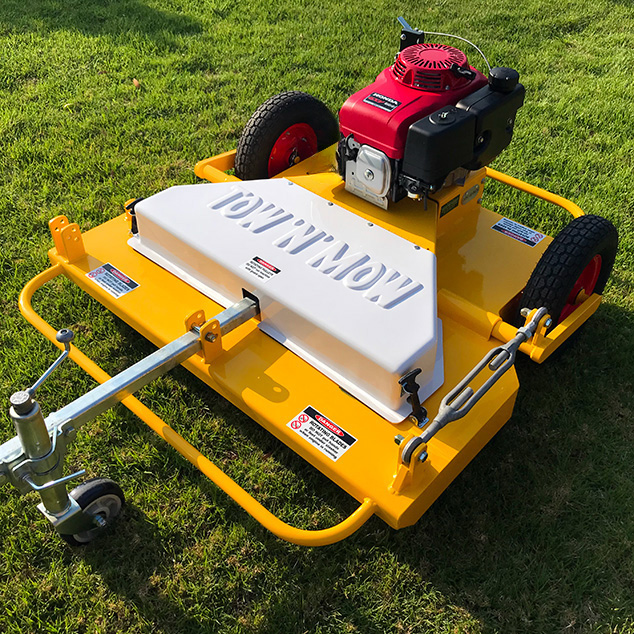

Tow ‘n’ Mow Heavy Duty slashers are proudly Australian made from high quality materials, powder coated and zinc plated surfaces ensure long lasting performance in the harshest of environments. Used as an independent cutting attachment the unit can be used to mow lawns or slash paddock grass. Originally designed for vineyards and orchards our slashers perform extremely well on sloping ground and over large areas.

Features include our tough 5mm steel deck, quick adjustable height control turnbuckle, standard centre or offset side drawbar positions, easy maintenance to all belts, triple bar blades and pulleys.

Now available - the new TNM-23E is built to handle the toughest mowing jobs.
